CollectorsCloud Collectors Administration Guide

Configure Azure Virtual Network Flow Cloud Collector

Set up the Azure Virtual Network Flow Cloud Collector to continuously ingest the virtual network flow logs.

  1. Before you configure the Azure Virtual Network Flow Cloud Collector, ensure that you complete the prerequisites.

  2. Log in to the New-Scale Security Operations Platform with your registered credentials as an administrator.

  3. Navigate to Collectors > Cloud Collectors.

  4. Click New Collector.

  5. Click Azure Virtual Network Flow.

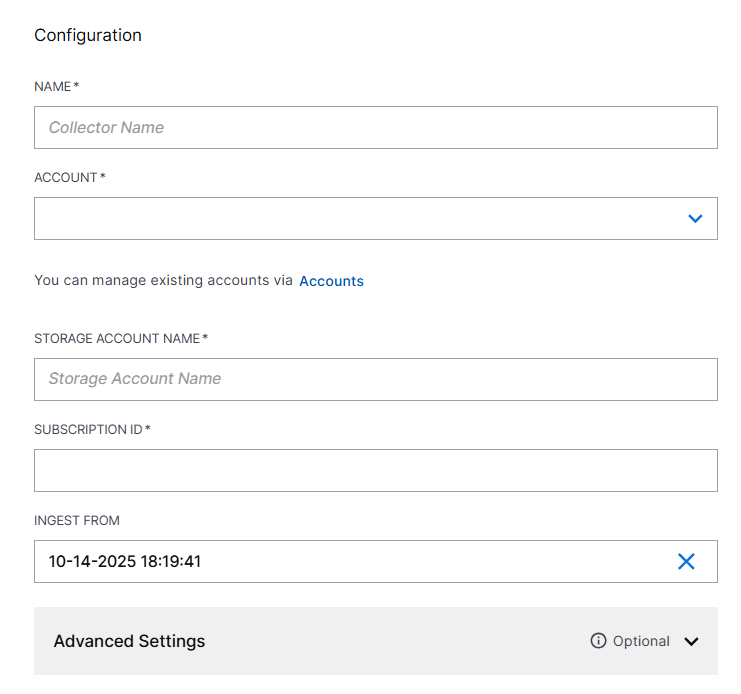

  6. NAME – Specify a name for the Cloud Collector instance.

  7. ACCOUNT – Click New Account to add a new Microsoft service account or select an existing account. You can use the same account information across multiple Microsoft Cloud Collectors. For more information, see Add Accounts for Microsoft Cloud Collectors.

  8. STORAGE ACCOUNT NAME – Enter the storage account name that you obtained while completing the prerequisites.

  9. SUBSCRIPTION ID – Enter the subscription ID of the storage account that you obtained while completing the prerequisites.

  10. INGEST FROM – Select the time and date to provide a threshold before which the collector will exclude events. If you leave this field blank and do not provide a threshold, all logs are ingested.

  11. (Optional) SITE – Select an existing site or to create a new site with a unique ID, click manage your sites. Adding a site name helps you to ensure efficient management of environments with overlapping IP addresses.

    By entering a site name, you associate the logs with a specific independent site. A sitename metadata field is automatically added to all the events that are going to be ingested via this collector. For more information about Site Management, see Define a Unique Site Name.

  12. (Optional) TIMEZONE – Select a time zone applicable to you for accurate detections and event monitoring.

    By entering a time zone, you override the default log time zone. A timezone metadata field is automatically added to all events ingested through this collector.


  13. To confirm that the New-Scale Security Operations Platform communicates with the service, click Test Connection.

  14. Click Install.


    A confirmation message informs you that the new Cloud Collector is created.
